The Active X has FCC Approved ID: XZMACTIVE-X – NATO stock number 5840 99 904 3941

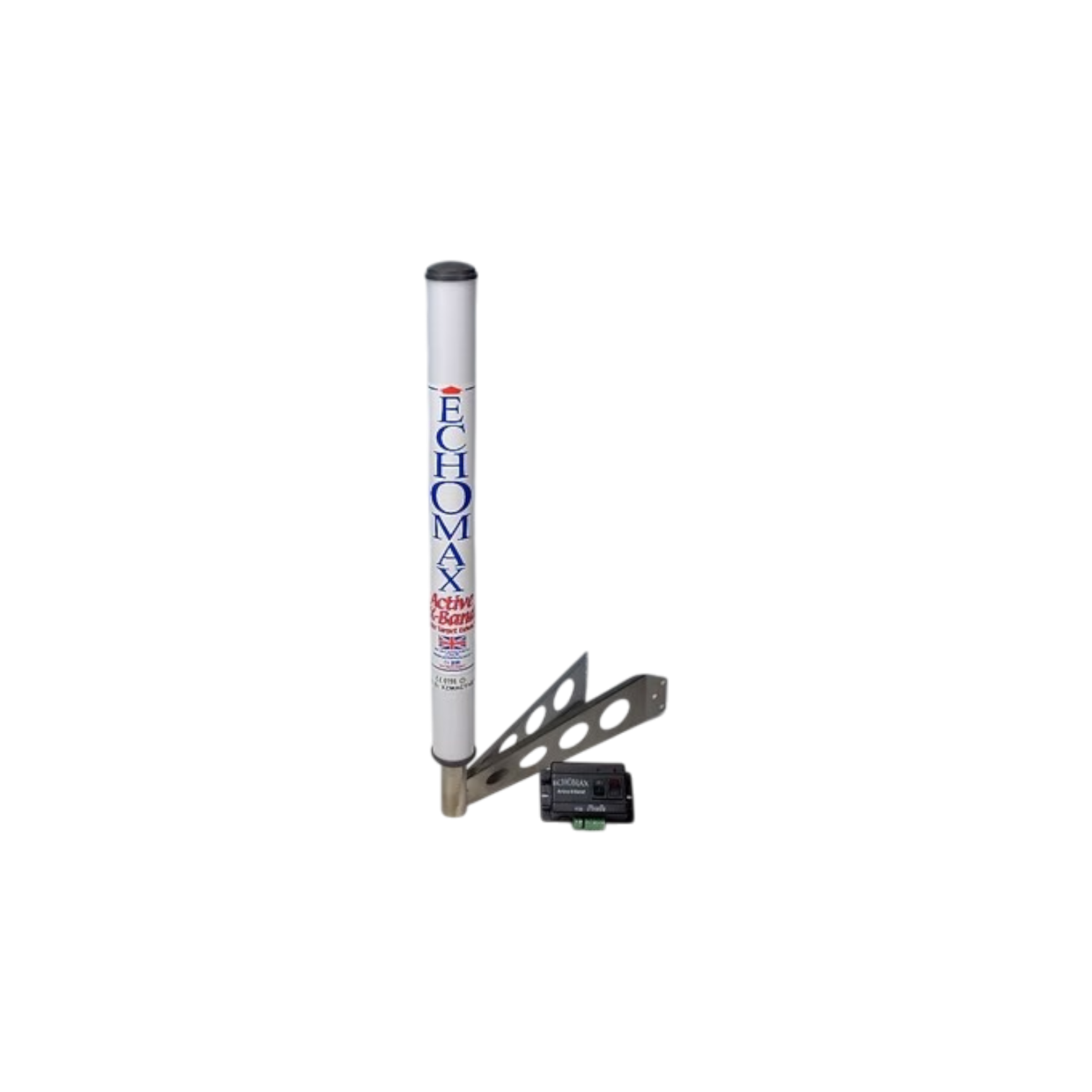

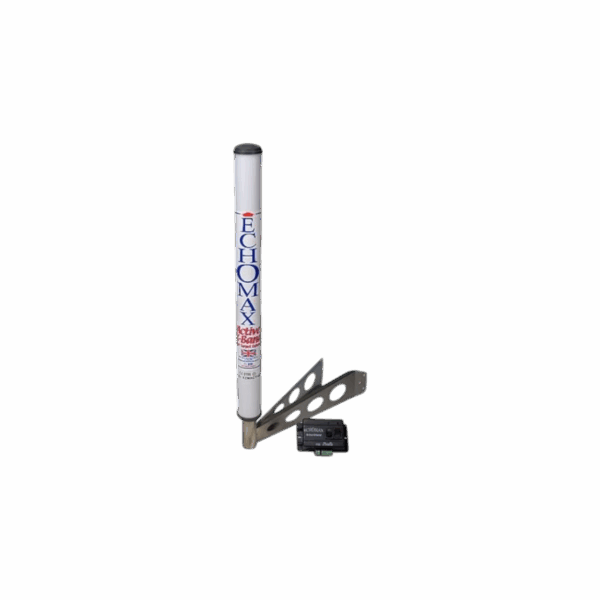

State of the art Echomax Active-X-Band Radar Target Enhancer receives a signal from transmitting radar, amplifies and returns a stronger signal. This increases the likelihood of detection reducing the risk of collision and helps to alert oncoming vessels of your position.
Active RTE are increasingly being used on navigation buoys and their estimated power consumption can be seen on the Technical info page. Non use of the control box saves 10mA of power.
Specification
Reception frequency: X band 9.32 – 9.5 GHz
Operating Temperature: -20 to +60 degrees C
Voltage: 12V DC – +30%-10% (voltage surge and cross polarity protected)
Stand by current consumption: 15mA
Position accuracy: Within 1 meter
5 interrogating radar 23mA
10 32mA
EIRP: 1W
Dimensions
Antenna length: 478 mm
Antenna width: 40.5 mm
Antenna weight: 327 gms excluding cable
Cable length: 24M 2 core 0.5mm2
Cable weight: 969 gms
